Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Superlift
  • Model Number: roof panel
  • Panel Material: Metal
  • Type: Polyurethane Sandwich Panels
  • PU panel: roof panel
  • Thickness: 50mm,75mm,100mm,125mm,150mm,200mm
  • Materails: color coated steel with PU
  • DIfferent pattern: Embossed,micro-wave,smooth,micro-rib
  • Different color: white color,silver grey color,
  • Length: as your request
  • Certificate: CE/ROHS
  • Average Density of Core: 40kg/m3
  • Unit Weight of 50mm thickness: 10.57kg/m2
  • Thermal Conductivity of Core: 0.022w/m . k

Packaging & Delivery

Packaging Details Carton,PE-film;Standard export packing or as you require
Delivery Time 7-10days after deposit



Polyurethane sandwich panels are made by polyurethane in the core. They are profiled by automated continuous forming machine and adhesive bonded later.



It has the characteristics sound insulation and fire-proof, fast installation speed, durability, and beautiful appearance, etc. so it is widly used as roofing material for steel structure plant, gym, Supermatet ,commercial and civilian facilities.



Product information







1.Superlift PU sandwich roof panel technical information:



Steel Thickness

0.33  / 0.45mm

Panel thickness

50/75/100/125/150/200 mm

Effective width

(1)960/980mm ---for roof

(2) 950/1250mm---for wall or ceiling or cold room

Length

According to customer's request,better less than 11.8m

Materials

Inner is  polyurethane ,two sides skin is Galvanized Color steel sheet

Structure

three layers:

(1)upper layer is steel sheet,

(2)the inner layer is polyurethane sheet

PU density

40-43(kg/m³)

color

White,silver grey, blue or refer RAL

Parts

Steel line for easy connect one by one

Film covering in order to protect the steel of panels

lifetime

10~20 years

Character

Light in weight, heat insulation, fire-proof and waterproof,environmental

Use

various roofs and walls referring to the large size factory buildings,

storages, exhibition halls, gymnasiums ,etc

Packing

Packing in shipping Container or according to your demands

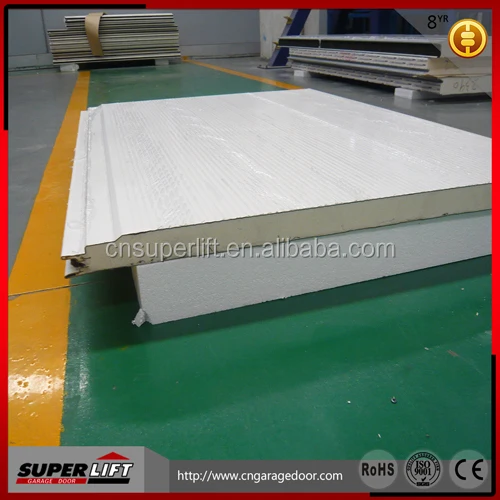

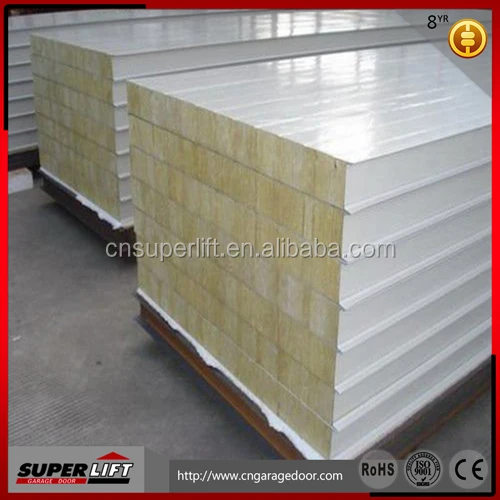

2.Some details photo for your reference:













3.Advantages of SUPERLIFT PU Sandwich wall panel and roof Panel

  • Heat and sound insulation: The outer steel sheets can maintain the lastingness of the color of the building, and reduce the solar radiation and keep the appropriate indoor temperature. The high quality heat insulation materials are made with the adoption of polyurethane PU and (PIR) polyisocyanurate resin acid hydrogen containing no Chloro-fluoro-carbons (CFC).
  • A degree inflaming retarding: This system can effectively prevent the fire and prevent the fire from spreading during the cross construction and during the use of the boards.
  • Environment protection: By learning after the successful experience in environment protection constructions from companies home and abroad and through our scientific analysis, we objectively bear the idea of “low carbon designing, environmental building materials and energy-saving technology” in mind.
  • Super-low heat conductivity: The lowest heat conducting coefficient of the heat insulation boards ensures that, under the condition that the thinnest heat insulation materials are used; the system can meet the energy-saving requirement and offer the strongest basic guarantee to meet the requirement of high standard heat insulation
  • Easy and quick to install:We could offer the install video for learn.

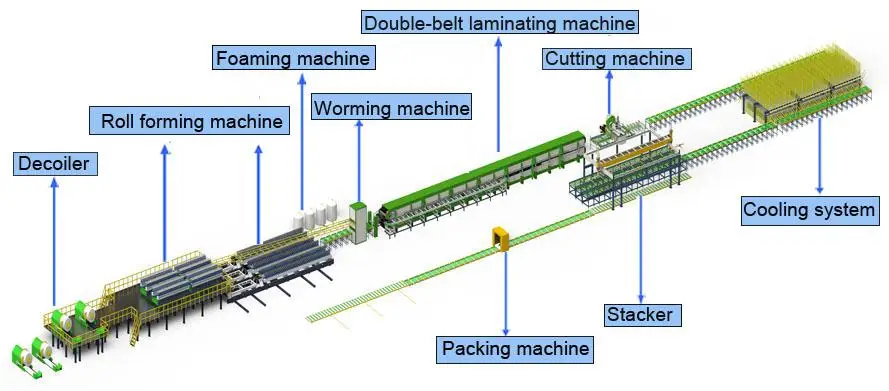

4. Production line introduction:


180m long workshop,36m long double belt machine:


5.Related PU sandwich panel:

Cold room panel:



Wall panel:

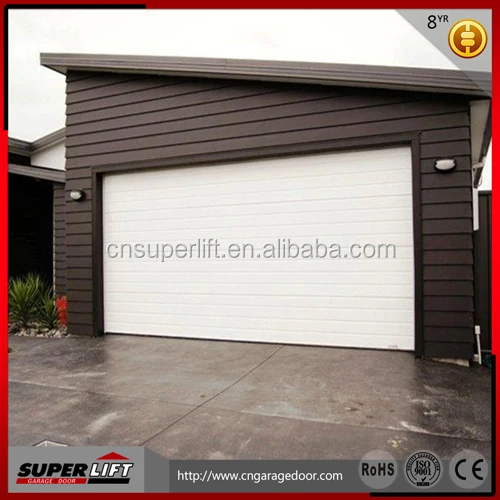

Garage door panel:




 6. Application of pu foam sandwich wall panels:

Steel house, suburban housing, villa, kindergarten, model house for apartment, commercial building, remodeling of old structures, warehouse, steel structure house, workshop, work plant, airport, cold storage, mobile house, etc.





Packaging & Shipping







Company Information

   Superlift is the largest,highest-specialized and most of famous garage door and door opener manufacturing enterprise in China.

    Now,we We have over 300 staff and work in the area of 50,000 sqm. The turnover of 2013 have reached 17 million USD. The most important, we have two advanced automatic panel production lines, which ensure fast lead time from 7 to 15 working days and could meet any demand from the customers.

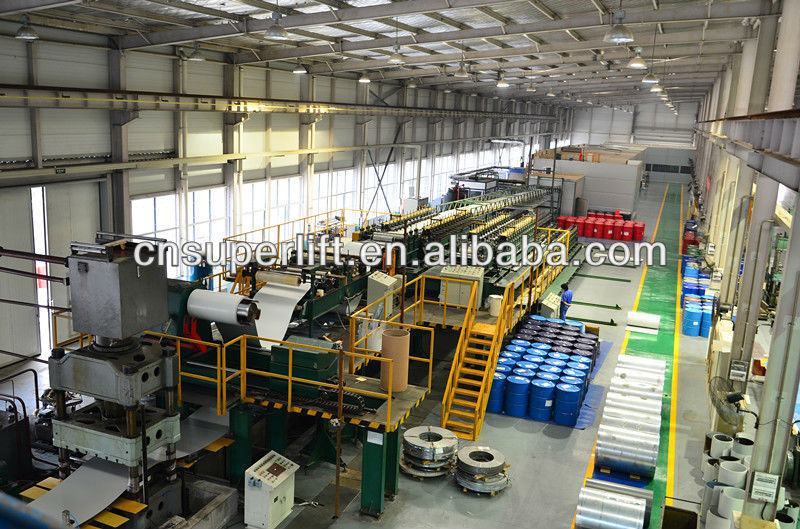

9000m² Work shop and PU SANDWICH PANEL PRODUCTION LINE:



Trade Shows





FAQ

About samples:

I. We are glad to supply small pc panel samples for free. But you have to pay the transport cost by express.And we can deduct the transport cost from your order.

II. It is no problem we send you a whole set sample door for testing by air or by sea.



2. Some Questions You May Ask

Question 1:Are you factory?

Answer:Yes,we are factory with 20years manufacturing experience in China,which have two advanced continuous PU sandwich panel production line.

Question 2: Warranty limit?

Answer: For a whole set, the warranty limit is 1 year.

Question 3: Lead time?

Answer: 10 to 20 days.

Question 4: Payment terms?

Answer: 50% deposit and rest balance against BL copy.

Question 5: Can you help with the delivery?

Answer: It is no problem.We will quote CIF price for you.
